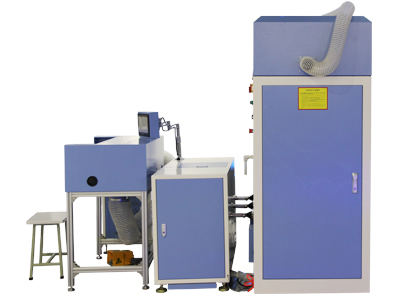

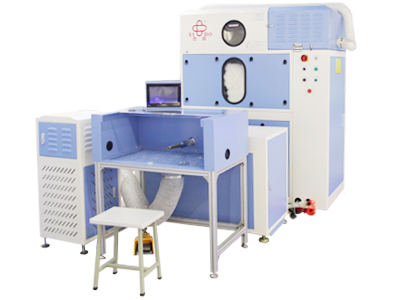

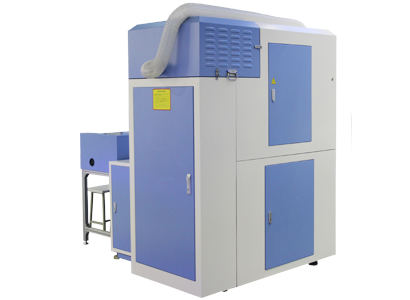

High Accuracy Automatic Down Filling Machine SCR-1P-3G

  • LEFT

  • Product Details
    Suggested Price(USD) Inquiry Power 1.5kW
    Voltage 220V 50/60Hz Minimum pressure required 0.58Mpa
    Volume of tank 0.6m³ Main Body Box Size(m) 1.5x0.7x2
    Weight Box Size(m) 1.5X0.5X0.9 Filling Desk Size(m) 1X0.8X0.6
    Minimum transport channel(m) 1X2 Place the smallest area(m) 3x2x2
    Recommend placing area(m) 4x2.5x2 N.W/G.W 400/600KG
    Filling Materials down 70%-90% Filling Port 1
    Down Storage Volume(kg) 4~5KG Single charge down weight 0.1-7g/0.1-15g/0.1-25g
    Weighing error ±0.05g Cycle Number 3
    Weight Range(g) 0.1-25g Accuracy Grade(g) 0.01
    Filling Speed(g/s) 1~8 Pressure Monitoring System
    Humidification system Multiple nozzle size
    Minimum air volume supply 0.5m³/min

    Quality Details

    Specialized, Dedicated, Serves Attentively

    Aviation Connector

    Selected special aviation connector, easy to install, strong capacity of turbulence resistance, reliable and durable, stable signal transmitting guaranteed.

    Acrylic Box

    Special acrylic box, eliminate electrostatic effect, weighing accuracy is high.

    Drive Shaft Zinc Plating-yellow

    High hardness, wear resistance, durable, not easy to rust.

    Operater Desk

    Aluminum alloy filling operater desk, supporting feet adjustable, tightness design, refused to shake.
